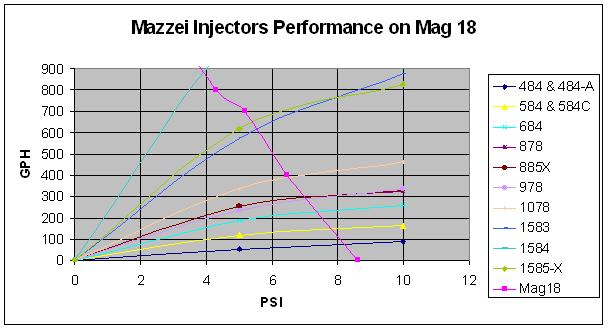

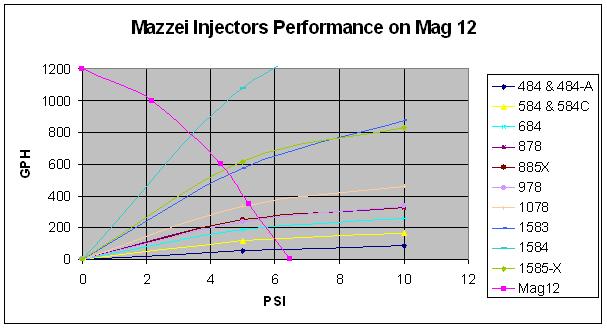

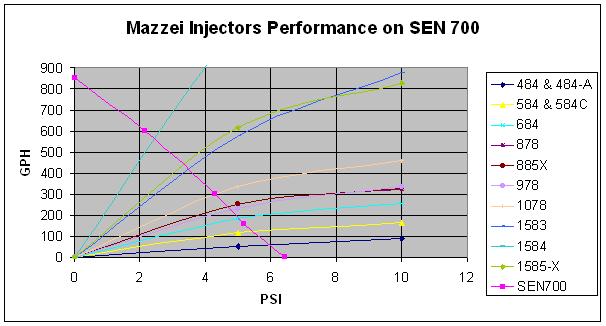

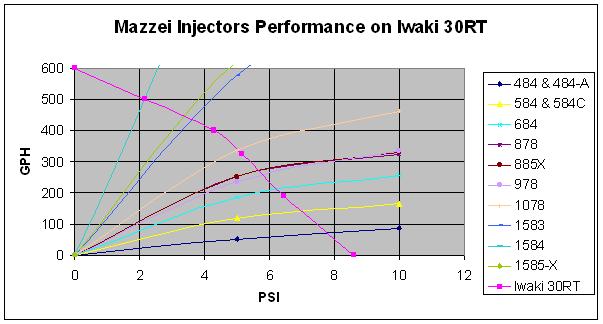

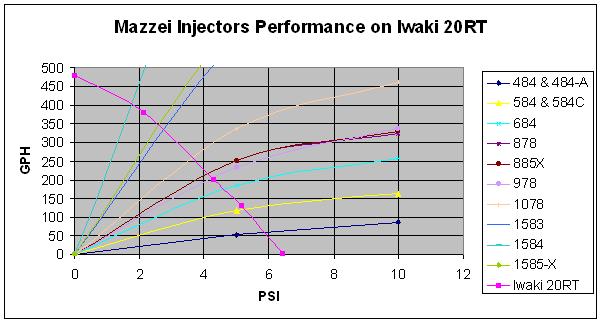

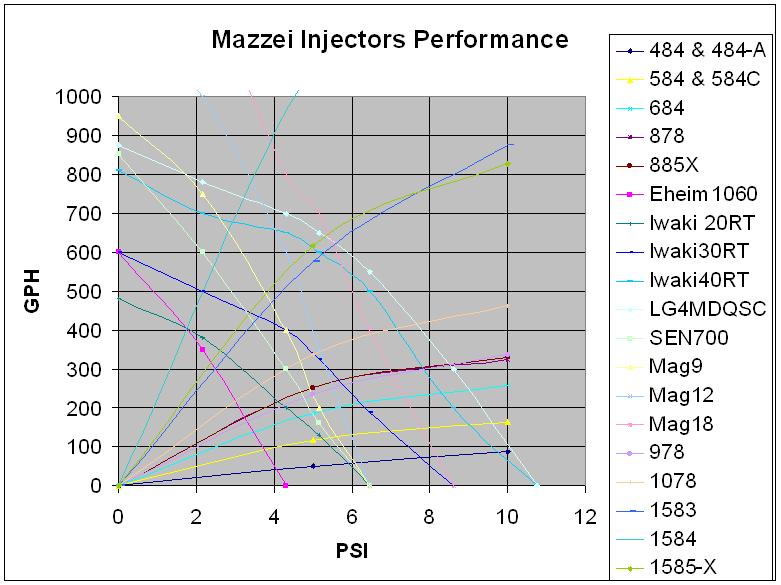

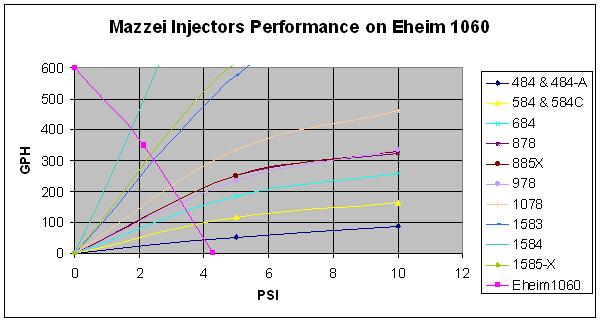

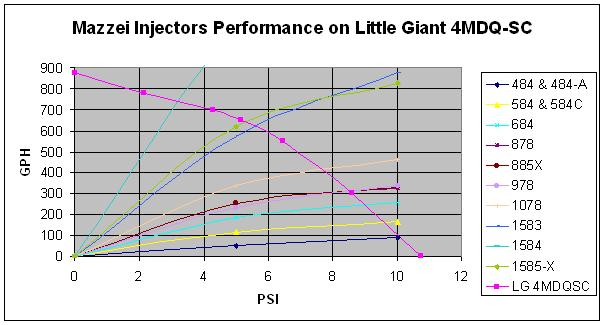

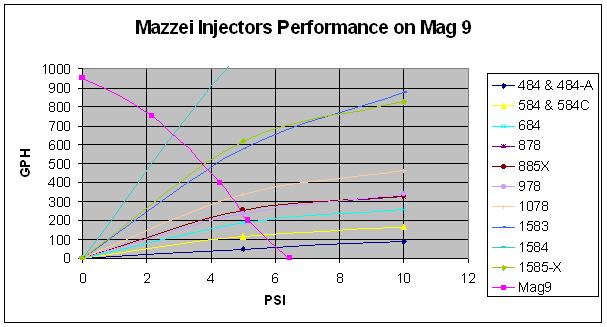

 Mazzei Injector PerformanceWhen designing skimmers, the Maazei injectors provides great performance in a small size. However, these injectors are designed to work with high inlet pressures. In other words, performance is degraded if pressure is not sufficiently maintained at the inlet. Most pumps on the market is unable to produce the type of pressure required to drive these injectors. To find out exactly how each pump behaves with a small subset of the large number of Mazzei injectors available, individual pump curve is over laid with the injectors' performance curves. Note that unless you have a good pressure rated pump, these injectors may not provide the best solution. However, when pump performance is not an issue, Mazzei provides injectors that can draw more air than any available Beckett or needle wheel based skimmers in existence. This allows the most flexibility in matching injectors to applications. Eheim 1060 Iwaki 20RT Iwaki 30RT Iwaki 40RT Little Giant 4MDQSC Mag 9 Mag 12 Mag 18 Sen 700 All pumps |
